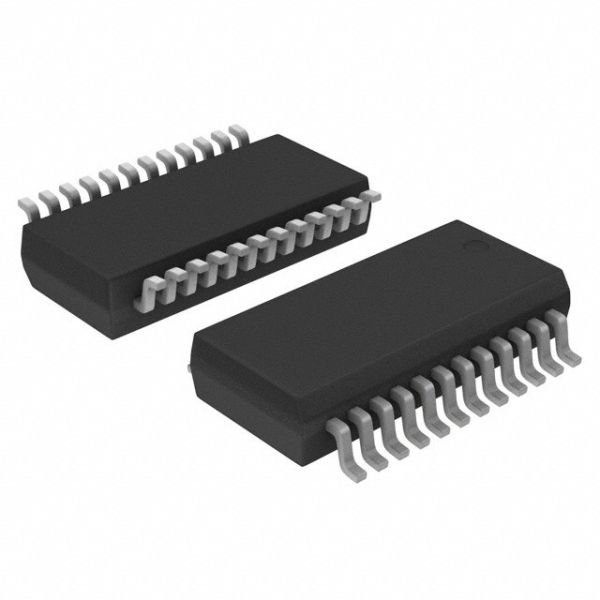

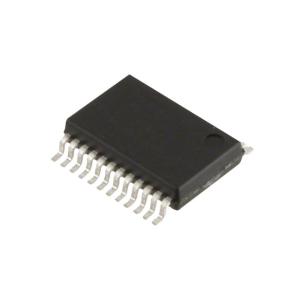

IR21141SSPBF

HALF-BRIDGE GATE DRIVER IC

Features

• Floating channel up to 600 V or 1200 V

• Soft over-current shutdown

• Synchronization signal to synchronize shutdown with the other phases

• Integrated desaturation detection circuit

• Two stage turn on output for di/dt control

• Separate pull-up/pull-down output drive pins

• Matched delay outputs

• Undervoltage lockout with hysteresis band

• Lead free

Description

The IR21141/IR22141 gate driver family is suited to drive a single half bridge in power switching applications. These drivers provide high gate driving capability (2 A source, 3 A sink) and require low quiescent current, which allows the use of bootstrap power supply techniques in medium power systems. These drivers feature full short circuit protection by means of power transistor desaturation detection and manage all half-bridge faults by smoothly turning off the desaturated transistor through the dedicated soft shutdown pin, therefore preventing over-voltages and reducing electromagnetic emissions. In multi-phase systems, the IR21141/IR22141 drivers communicate using a dedicated local network (SY_FLT and FAULT/SD signals) to properly manage phase-to-phase short circuits. The system controller may force shutdown or read device fault state through the 3.3 V compatible CMOS I/O pin (FAULT/SD). To improve the signal immunity from DC-bus noise, the control and power ground use dedicated pins enabling low-side emitter current sensing as well. Undervoltage conditions in floating and low voltage circuits are managed independently.
