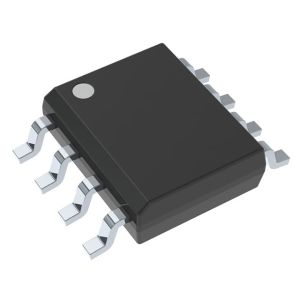

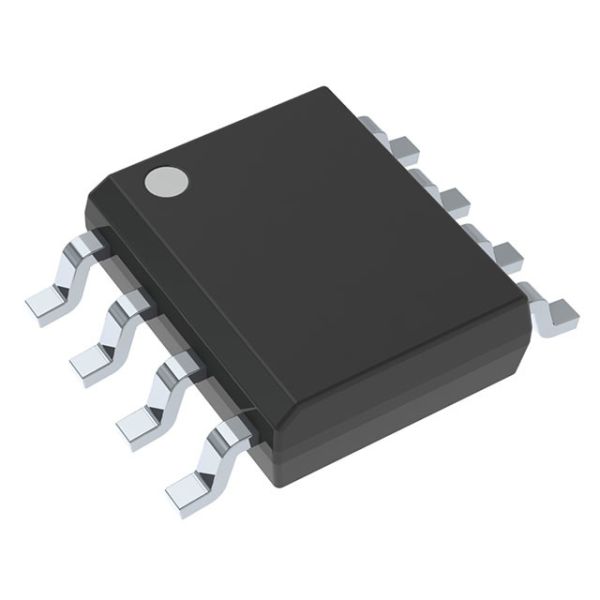

LMC6482AIM Integrated Circuit Chip , Amplifier computer microchip integrated components

LMC6482 CMOS Dual Rail-To-Rail Input and Output Operational Amplifier

Features

(Typical unless otherwise noted)

♦ Rail-to-Rail Input Common-Mode Voltage Range

(Guaranteed Over Temperature)

♦ Rail-to-Rail Output Swing (within 20 mV of supply rail, 100 kΩ load)

♦ Guaranteed 3V, 5V and 15V Performance

♦ Excellent CMRR and PSRR: 82 dB

♦ Ultra Low Input Current: 20 fA

♦ High Voltage Gain (RL = 500 kΩ): 130 dB

♦ Specified for 2 kΩ and 600Ω loads

♦ Available in MSOP Package

General Description

The LMC6482 provides a common-mode range that extends to both supply rails. This rail-to-rail performance combined with excellent accuracy, due to a high CMRR, makes it unique among rail-to-rail input amplifiers

It is ideal for systems, such as data acquisition, that require a large input signal range. The LMC6482 is also an excellent upgrade for circuits using limited common-mode range amplifiers such as the TLC272 and TLC277.

Maximum dynamic signal range is assured in low voltage and single supply systems by the LMC6482’s rail-to-rail output swing. The LMC6482’s rail-to-rail output swing is guaranteed for loads down to 600Ω

3V Single Supply Buffer Circuit
